You can use the following steps to find a critical path in a network diagram:

1. Draw the network diagram.
2. Identify all paths in the network diagram.
3. Find the duration of each path.
4. The path with the largest duration is the critical path.

How long is the critical path in days?

If the first activity on the critical path is 1 day late, the project will take 31 days to complete, unless another activity on the critical path can be completed 1 day earlier. The critical path essentially determines the end date in your project schedule.

How do you find the critical path of a project?

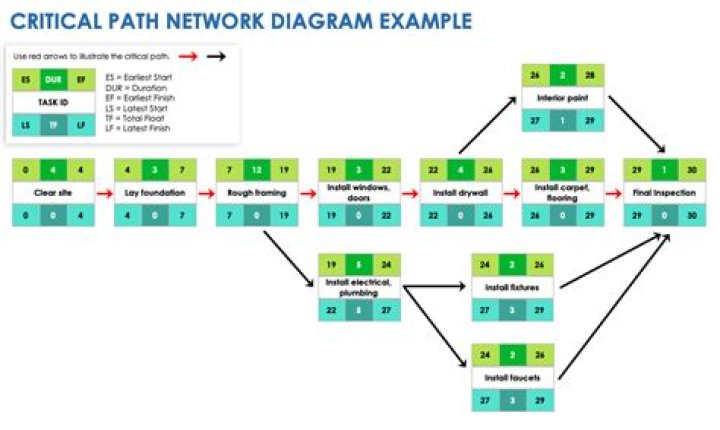

How to Calculate Critical Path

1. Divide the Project into Tasks. Make a list of your tasks.
2. Order and Identify Dependencies. Put your tasks in a logical line-up.
3. Create the Network Diagram. Now, you can make your task line-up visual.
4. Estimate Duration.
5. Perform Resource Leveling.
6. Determine the Critical Path.

What is a critical path diagram?

Once you’ve identified all tasks and their dependencies, it’s time to create a network diagram, also known as a critical path analysis chart. This chart visualizes separate activity sequences and enables you to map dependencies easily. To create it, make a list of all activity sequences.

Is critical path is the shortest path?

In project management, a critical path is the sequence of project network activities which add up to the longest overall duration, regardless if that longest duration has float or not. This determines the shortest time possible to complete the project. Yes the critical path is not the shortest path through a network.

Does critical path have zero float?

Any activity or task on the critical path has zero float. That is, you can’t delay it at all without causing a delay in the project or dependent tasks. Calculating the float or slack of all activities in the project is crucial for better distribution of resources.

How do you manage critical path?

To do this, you can:

1. Shorten the duration or work on a task on the critical path.
2. Change a task constraint to allow for more scheduling flexibility.
3. Break a critical task into smaller tasks that can be worked on at the same time by different resources.
4. Revise task dependencies to enable more scheduling flexibility.

Why is critical path the longest path?

Fact: The critical path is the longest path through the network diagram, meaning the sequence of activities that collectivity define the starting and ending dates for the project and have no slack or float time (excess time). Conversely, non-critical paths have slack time which is the amount of time a task can slip.

Can a critical path have positive float?

In what circumstance does the critical path of a project have positive total float? – Quora. By definition the critical path has zero float. Many project teams add artificial float as way to hedge project schedule risk. In the strictest sense, this is not good project management practice.

Is the longest path the critical path?

The critical path (or paths) is the longest path (in time) from Start to Finish; it indicates the minimum time necessary to complete the entire project.

Why is the critical path the shortest?

In project management, a critical path is the sequence of project network activities which add up to the longest overall duration, regardless if that longest duration has float or not. This determines the shortest time possible to complete the project. There can be ‘total float’ (unused time) within the critical path.

Is critical path is the longest path?

Does critical path always have zero float?

Any activity or task on the critical path has zero float. That is, you can’t delay it at all without causing a delay in the project or dependent tasks. However, there are plenty of other activities in the project that can be delayed.

Can a critical path have negative float?

Critical activities can also have negative float. Negative float occurs when an imposed finish date creates a schedule that is shorter than the duration calculated to complete the activities on the critical path. A project with negative float is behind schedule.
