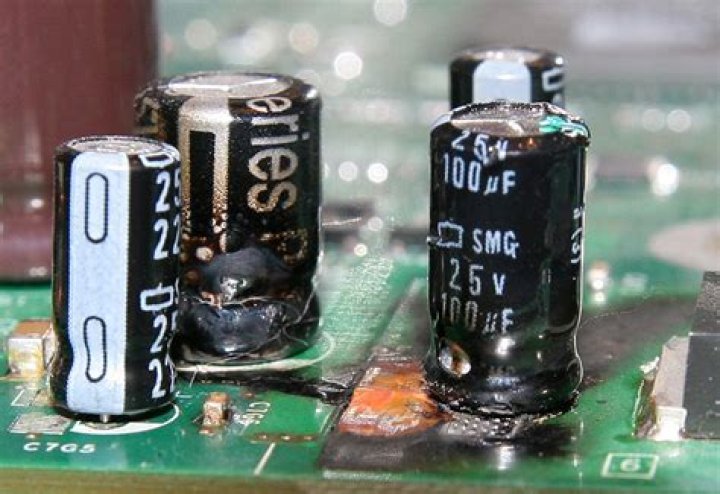

Tantalum, Oscon, and aluminum electrolytic capacitors are all polarized, specifically to be used as bypass capacitors.

What is bypass capacitor in an amplifier?

The bypass capacitor is a capacitor that shorts AC signals to the ground in a way that any AC noise that presents on a DC signal is removed producing a much cleaner and pure DC signal.

What is the role of the bypass capacitor in transistor amplifier circuits?

To overcome this problem a capacitor, called an “Emitter Bypass Capacitor”, CE is connected across the emitter resistance as shown. This bypass capacitor causes the frequency response of the amplifier to break at a designated cut-off frequency, ƒc, by-passing (hence its name) signal currents to ground.

Where should bypass capacitors be placed?

The ideal location to place bypass capacitors is as close as possible to the supply pin of the component. By placing the bypass capacitor very close to the power supply pin, it reduces the impact of the current spikes during the switching. It also provides a low impedance path to ground for AC noise signals.

What happens when you bypass a capacitor?

If the bypass capacitor is removed, an extreme degeneration is produced in the amplifier circuit and the voltage gained will be reduced. A capacitor can go bad after sustaining damage from excess power. As a capacitor connected to the compressor begins to weaken and fail, “hard starting” will occur.

Can I bypass a motor capacitor?

Bypassing it will cause loss of torque, making the compressor work harder to start, causing higher power consumption, and quite possibly causing your compressor to run backwards, effectively losing all cooling capabilities altogether. Never ever bypass a capacitor.

What is the purpose of bypass capacitor?

What is a bypass capacitor? A bypass capacitor is used to prevent noise from entering the system by bypassing it to the ground. It is connected between the supply voltage (Vcc) and ground (GND) pins to reduce power supply noise and voltage spikes on the supply lines.

Why bypass capacitor is used in BJT amplifier?

A Bypass Capacitor is usually applied between the VCC and GND pins of an integrated circuit. The Bypass Capacitor eliminates the effect of voltage spikes on the power supply and also reduce the power supply noise. The name Bypass Capacitor is used as it bypasses the high frequency components of power supply.

What is use of coupling and bypass capacitor?

Coupling capacitors (or dc blocking capacitors) are use to decouple ac and dc signals so as not to disturb the quiescent point of the circuit when ac signals are injected at the input. Bypass capacitors are used to force signal currents around elements by providing a low impedance path at the frequency.

How do you use a bypass capacitor?

The Bypass capacitor is used to prevent noise from entering the system by bypassing it to the ground. The bypass capacitor is placed between the pins of supply voltage (Vcc) and Ground (GND) in order to reduce both Power supply noise and the result of spikes on the supply lines.

When is a bypass capacitor used in an amplifier?

The bypass capacitors are almost used in all the analog and digital circuits for removing unwanted signal from the supply voltage, some of the notable applications where they are used They are used between amplifier and loudspeaker for a clear audio.

What is the function of coupling and bypass capacitors in CE?

Coupling capacitors (or dc blocking capacitors) are use to decouple ac and dc signals so as not to disturb the quiescent point of the circuit when ac signals are injected at the input. Get 2 months of Kindle Unlimited for free!

Do you use polarized capacitors in signal paths?

You generally don’t want to use polarized capacitors in signal paths. It’s pretty straight forward, there is an AC voltage which rides on top of the DC voltage. Ideally the combined voltages should never go negative, which means that for the most negative portion of the AC voltage it will still have a lower magnitude than the DC component.

Can a circuit be run without a bypass capacitor?

A circuit without Bypass Capacitor or improper Bypassing can create severe power disturbances and may lead to circuit failure. Hence, an appropriate Bypass Capacitor must be used in the circuit. The following are a few considerations that must be taken into account when selecting a Bypass Capacitor.
