The instructions which are to be executed by microprocessor are first stored in the memory of the processor and then executed. But the processor does not execute the instructions directly. It reads the instruction byte by byte and then executes it.

How an instruction is executed explain briefly?

The program which is to be executed is a set of instructions which are stored in memory. The central processing unit (CPU) executes the instructions of the program to complete a task. The major responsibility of the instruction execution is with the CPU. The instruction execution takes place in the CPU registers.

How instructions are executed in microcontroller?

Microcontroller Operation To execute an instruction, the processor copies the instruction code from the program memory into the instruction register (IR). It can then be decoded (interpreted) by the instruction decoder, which is a combinational logic block which sets up the processor control lines as required.

How do computer processors execute instructions?

The CPU executes a program that is stored as a sequence of machine language instructions in main memory. It does this by repeatedly reading, or fetching, an instruction from memory and then carrying out, or executing, that instruction.

What are the three basic steps in the instruction execution cycle?

It is composed of three main stages: the fetch stage, the decode stage, and the execute stage.

What is instruction and execution cycle?

Instruction Execution Cycle The time period during which one instruction is fetched from memory and execute when computer given an instruction in machine language. Each instruction is further divided into sequence of phases. After the execution of program counter is incremented to point to the next instruction.

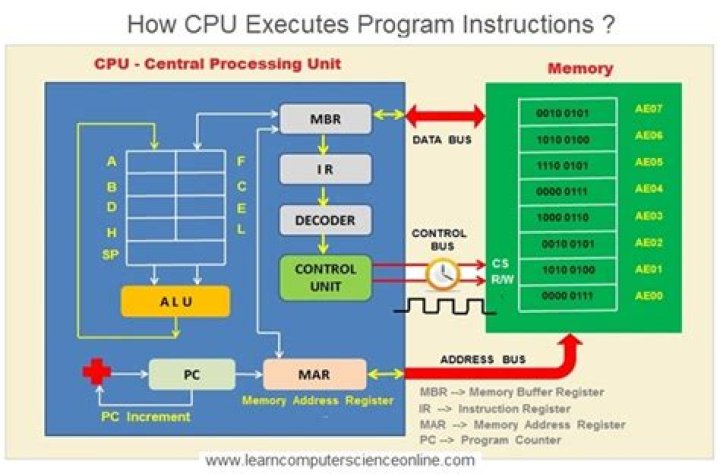

How does fetch execute cycle work?

The basic operation of a computer is called the ‘fetch-execute’ cycle.

1. The CPU fetches the instructions one at a time from the main memory into the registers. One register is the program counter (pc).
2. The CPU decodes the instruction.
3. The CPU executes the instruction.
4. Repeat until there are no more instructions.

How instructions are stored in memory?

An instruction, stored in the memory, is fetched into the control unit by supplying the memory with the address of the instruction. The control unit decodes the instruction in order to find the sequence of operation necessary to execute it.

What are the basic instruction cycle stages?

In a basic computer, each instruction cycle consists of the following phases: Fetch instruction from memory. Decode the instruction. Execute the instruction.

How does instruction execution in microprocessors work?

To find the data for performing the operation the microprocessor instructs the timing and control unit to generate a proper timing signal to obtain the data. As a result of the timing signal the program counter is increased by 1. So the address bus moves from 5500H to 5501H.

Where are the instructions stored in a microprocessor?

The instructions which are to be executed by microprocessor are first stored in the memory of the processor and then executed. But the processor does not execute the instructions directly.

How are instructions executed in an 8086 microprocessor?

In the 8086 microprocessors, the instructions are executed in 4 steps which are listed as follows: 1 Fetch the instruction 2 Decode the instruction 3 Fetch the operands 4 Execution of the instruction More …

Which is the first byte under execution in a microprocessor?

A microprocessor by default knows that the first byte which is under execution is always Opcode. The internal data bus sends the Opcode to the instruction decoder. The instruction decoder decodes the Opcode and identifies it as MVI A instruction.
