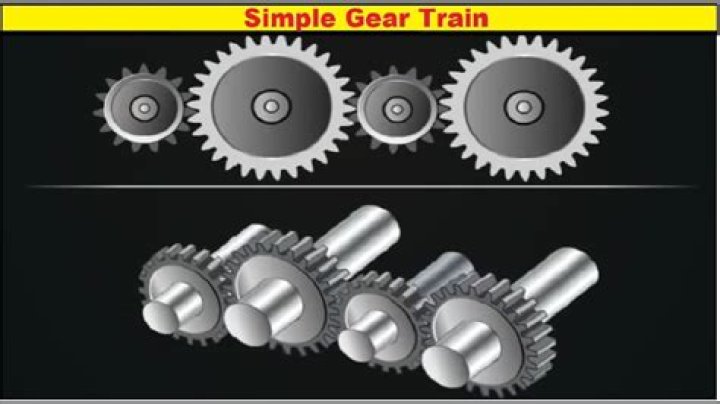

A Simple Gear Train is a number of Simple Gear-Pairs in series. Each shaft/axis has only one gear. Use a Simple Gear Train: •To increase the distance between the input and output shafts and still use small gears.

What is meant by an idler gear?

1 : a gear placed between a driving and a driven gear to transfer motion without change of direction or gear ratio. 2 : a gear for support or guidance instead of power transmission.

What is the gear ratio of this simple gear train with idler?

The input gear in this gear train has 13 teeth and the idler gear has 21 teeth. Considering only these gears, the gear ratio between the idler and the input gear can be calculated as if the idler gear was the output gear. Therefore, the gear ratio is driven/drive = 21/13 ≈1.62 or 1.62:1.

Where is a simple gear with idler used?

Originally Answered: where would you use a simple gear train with idler? You’d use it in place of a belt or chain drive when you needed to transmit more power than a belt drive can reliably handle, and/or you need that motion to be transmitted precisely.

Where would an idler gear be used in real life?

An idler-wheel is a wheel which serves only to transmit rotation from one shaft to another, in applications where it is undesirable to connect them directly. For example, connecting a motor to the platter of a phonograph, or the crankshaft-to-camshaft gear train of an automobile.

Where would an idler gear be used?

An idler gear in a gear train is defined as the gear placed between the input and output shafts (between the drive gear and the driven gear). For example, it is used to change the rotational direction of the output shaft, or to fill a large gap between the input and output shafts without affecting the speed ratio.

Where would a simple gear with idler be used?

What is the advantage of a idler gear?

The purpose of an idler gear can be two-fold. Firstly, the idler gear will change the direction of rotation of the output shaft. Secondly, an idler gear can assist to reduce the size of the input/output gears whilst maintaining the spacing of the shafts.

Which is an idler gear in a simple gear train?

When a simple gear train has three meshed gears, the intermediate gear between the driver gear and the driven gear is called an idler gear. An idler gear does not affect the gear ratio (velocity ratio) between the driver gear and the driven gear. Compound gear trains involve several pairs of meshing gears.

Can a idler gear be used in a drive shaft?

If you use idler gears inside your gear systems, you can also monitor the rotation directions of shafts. As you see in the illustration above, if an idler gear is used between driven and driving gears, the rotation directions of them are the same.

Which is the intermediate gear between the driver and the driven gear?

The gear that is turned by the driver gear is called the driven gear. When a simple gear train has three meshed gears, the intermediate gear between the driver gear and the driven gear is called an idler gear. An idler gear does not affect the gear ratio (velocity ratio) between the driver gear and the driven gear.

How are two gears used in simple gear train?

IDLER GEAR SIMPLE GEAR TRAIN COMPOUND GEAR TRAIN A simple gear train uses two gears, which may be of different sizes. If one of these gears is attached to a motor or a crank then it is called the driver gear. The gear that is turned by the driver gear is called the driven gear.
